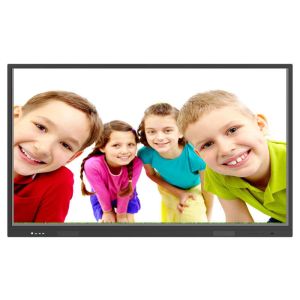

65 Inch Aluminium Frame LCD LED Touch Screen Interactive Whiteboard For Classroom
Advantage
1, Aluminum frame, steel nano surface,4mm tempered glass for screen protection.
2, Dual system,an array of inputs points including HDMI,USB,and OPS .
3, 15W*2 professional speakers ,suitable for classrooms and meetings.
4, 4k screen, 4k resolusion ,offering a greater high - definition .
5, 10-points IR touch technology enjoys freely interaction.
Software
The interactive software incorporates drawing tools and shapes for meetings, presentations and teaching but takes this further so that you can draw on surface by fingers, annotate live websites and save your work for reference. The software also includes hand writing to office software using the felt pen or finger.
You also have the ability to create charts, graphs, three dimensional drawings, images and tables, and use the integrated mathematical instruments to explain simple or complex theory to students. Catch the pictures from video.
Accessories
AC Power Cable
Operating Instructions & Quick Start Guide
DVD/RW(optional)
Pens
Wall Mount
Remote-control unit
Warrantly time
The whole item with 1 year, touch PCB for interactive PC come with advanced replacement warranty as standard for 3 years, which means if there is a problem and we can’t fix it you’ll get a replacement straight away.
Specifications
| Parameters |
| Product Name | TA-65 Educational digital classroom Smartboard |
| Voltage range | AC(100-240)V/50-60HZ |
| Maximum power consumption | <270W |
| Standby | <1W |
| Operating temperature | 0°C~40°C |
| Hanging size | 600 x 550mm |
| LCD panel parameters |
| Display size | 65” |
| Display technology | LED |
| Brightness | 330cd/m2 |
| Contrast ratio | 4000:1 |
| Available size | 1428.5x 803.5mm |
| Visual Angle | 178° |
| Resolution | 1920×1080 |
| Working life | 50000 hours |
| PC parameters |
| Intel i3 ,RAM 4G, 500GB Hard disk,CPU number i3 2120 or above |
| Display panel parameters |
| Image model | 16:9 / 4:3 |
| Sound system Accuracy | B/G,D/K,I |
| Loudspeaker | 2 x 10W @ 8Ω |
| Number of channel storage | 120 |
| Chromaticity | 10Bit,107000 |
| Input port | RF; AV (+AUDIO); YPBPR(+AUDIO); S-Video; VGA ;PC AUDIO ;USB ; |
| Out Put | Earphone ; AV (+AUDIO); RS232 ; USB-B ; |
| Touch parameters | |
| Touch technology | IR |
| Working life | 100000 hours |
| Position accuracy | 2mm |
| Physical Installtion | Wall Mount (Bracket provided) |
| Pen touch identification size | ≥ Ø8mm |
| Touch points | 10 points |
| Writing screen media | 4mm tempered high transparent anti-glare glass |
| Response speed | ≤5ms |
| Communication mode | USB |
| Life | ≥60 million |
| Accessories | |
| Remote control | One |
| Power wire | 2Mx1 |
| VGA extension cord | No |
| Audio extension cord | No |
| USB extension cord | No |
| Whiteboard pen | One |
| CD | One |
| Warranty card | One |
| Wall mount bracket | XD2174 x1 |
Eclass software
Touch Screen Interface
